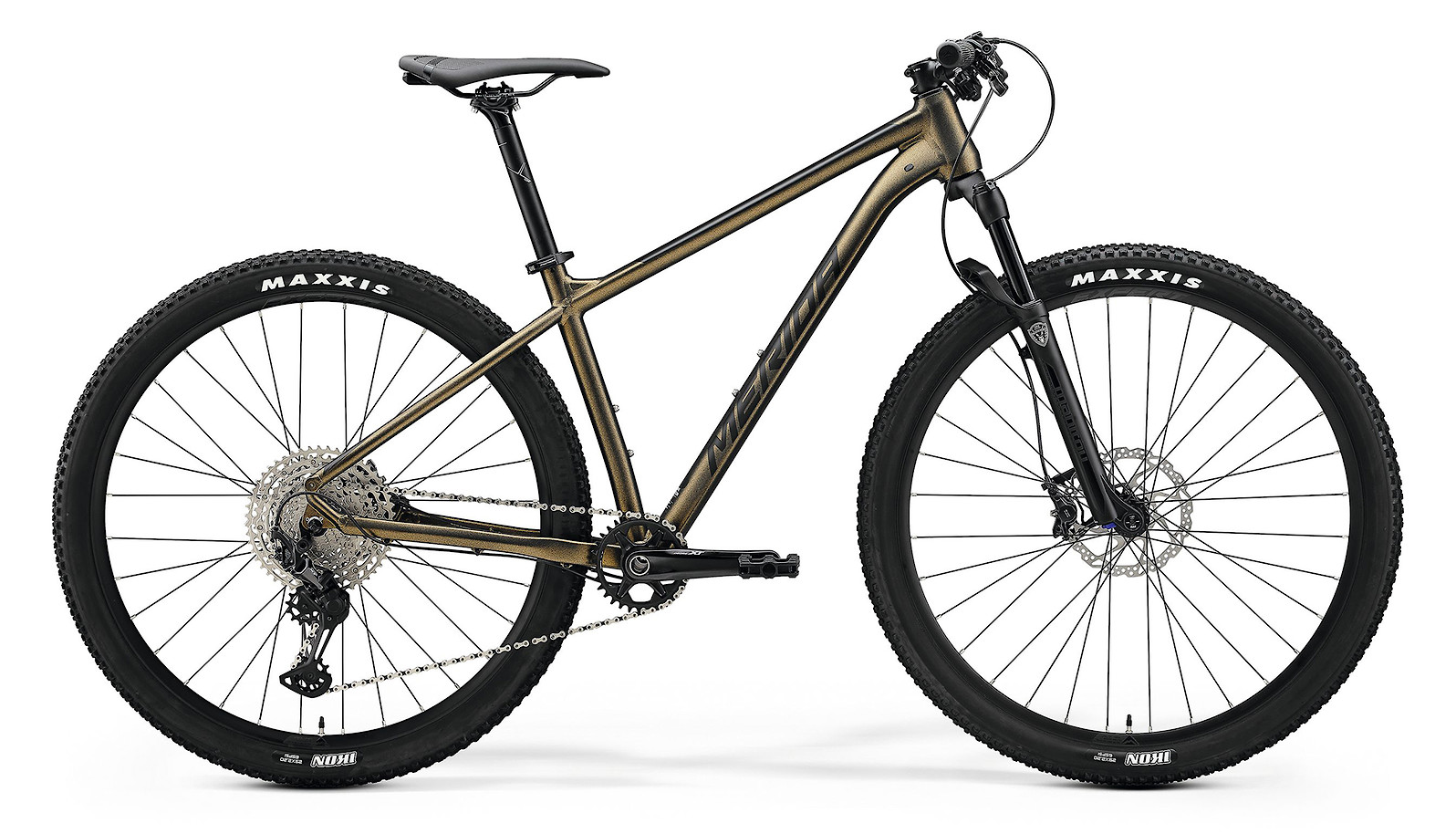

2022 Merida Big.Nine XT Edition Bike

s1600 photo 398658
c70 photo 398658
c70 photo 592017.jpg?VersionId=sgsZO3C2i2hgg
s1600 photo 398658 s1600 photo 592017
Related:
Merida
Where To Buy
Free Delivery on purchases over £20.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Merida Big.Nine XT Edition Bike
Model Year
2022
Riding Type
Cross Country
Rider
Unisex
Sizes and Geometry
SM
MD
LG
XL
XXL
Wheel Size
29"
Frame Material
Aluminum
Frame Material Details
TFS III Racelite 6061 double-butted technoformed aluminum
Rear Travel
Hardtail
Rear Shock
None
Fork
Manitou Markhor Comp, remote lockout, 51mm offset
Fork Travel
100mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Merida M2331
Handlebar
Merida Expert CC, aluminum, flat, 760mm width, 31.8mm clamp diameter
Stem
Merida Expert CC, aluminum, 6° rise, 31.8mm bar clamp
Length: 70mm (SM), 80mm (MD), 90mm (LG), 100mm (XL), 110mm (XXL)
Grips
Merida Comp EC
Brakes
Shimano Deore XT M8100, 2-piston, Shimano RT54 CENTER LOCK rotors (180mm front, 160mm rear)
Brake Levers
Shimano Deore XT M8100
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+
ISCG Tabs
None
Chainguide
None
Cranks
Shimano Deore XT
Length: 170mm (SM), 175mm (MD-XXL)
Chainrings
Shimano Deore XT, 32 tooth
Bottom Bracket
Shimano BB52, English/BSA threaded
Pedals
VP VPE-891 platform
Chain
KMC X12, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Merida Expert CC, aluminum, 22.8mm inner width, 32 hole, tubeless ready
Hubs
Shimano, MT400 110x15mm Boost front, MT401 135x9mm quick release rear with MICRO SPLINE driver
Spokes
Double-butted stainless steel
Tires
Maxxis Ikon, wire bead, 29" x 2.2"
Saddle
Merida Comp SL
Seatpost
Merida Comp CC, aluminum, zero setback
Seatpost Diameter
30.9mm
Seatpost Clamp
Merida Comp, quick release
Rear Dropout / Hub Dimensions
135x9mm quick release
Max. Tire Size
29" x 2.25"
Bottle Cage Mounts
Two inside front triangle
Colors
Silk Sparkling Gold/Black, Dark Silver/Black
Warranty

Weight

Miscellaneous
• Internal cable routing
• Kickstand, rear fender, and rear rack mounts
• Includes Merida multitool with saddlebox attachment
